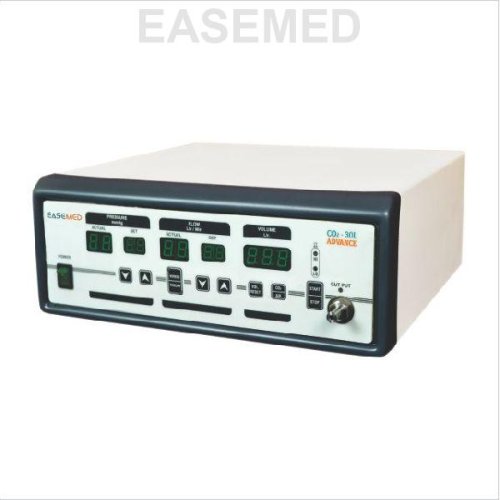

CO2- 30L Advance CO2 Insufflator

CO2 Advanced Insufflator is an essential requirement for comfortable long endoscopy procedures. We present next generation newly designed CO2 insufflators, integrated with outstanding technical features and controlled by the microprocessor of the latest generation.

These equipment are the best alternative to conventional light sources in which cumbersome external regulators, flow meters, and specialized valves are required. It is developed with smart and latest software that reduces the flow as soon as it senses zero requirements of CO2 by the clinician

Features

• Eliminates the requirement for cumbersome external regulators, flow meters and specialized valves
• Significantly improves intubation depth & patient discomfort during DBE
• Compact design
• Reduces flow when not required
• Quicken patient recovery time
• Managed flow mode for conserving gas
• No need for specialized CO2 valves
• Over-pressure alarm and safety shutdown features help assure patient safety
• Reduces postprocedural abdominal pain
• No special utilities required

Applications

• ERCP
• Enteroscopy
• Colonoscopy
• EUS
• EGD

Product Details

• Application:Hospital/Veterinary Purpose
• Technical Specifications: :
• Gas : CO2 (medical)
• CO2 gas supply systems : Inf 7/16″
• Input pressure min. to max : 2 to 3 bar
• Insufflation pressure min to max : 4 – 30 mm h (to an accuracy of 1 mm Hg)
• Flow rate min to max : 1 to 20 liters /min (model – c02 -2000) : 1 to 30 liters/min (model – lc02 – 3000)
• Type of power supply : 230 vac + 15% @ 50 – 60 Hz
• Protection by fuse : 5a
• Power consumption : 125 w max with warmer of 20 w max
• Output connection : 6 to 7 mm id tube
• Display : 7 segment 16 x 2 LCD
• Keyboard : feather touch
• Enclosure : ABS plastic box
• Dimension : 260 (l) mm x 290 (w) mm x 105 (h) mm
• Weight : Approx. 2 kg
