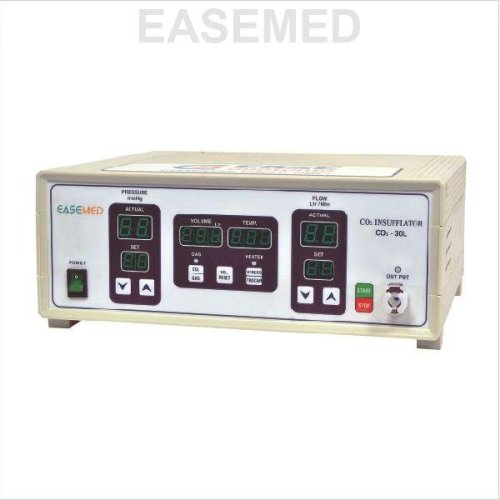

CO2 -30 L CO2 Insufflator

CO2 Insufflator – 30L is integrated with a built-in insufflation program that is specially engineered for rendering comfort and safety to the patients. It features an LCD screen with 7 segment display which shows set & actual value for pressure, flow, and temperature and gas consumption.

This model of insufflator gives an immediate response to all the procedures with its advanced high-speed micro controlled technology and built-in over pressure alarm and pressure release systems.

Features

• Internal over pressure release valve
• Rapid and continuous delivery of gas
• Immediate response
• User-friendly design
• Compact design
• Highly portable
• Inbuilt safety features
• Trocar & verrles modes
• Display for actual gas consumption & temperature
• Greater accuracy & measurement of CO2
• Advanced high speed micro controller technology
• Over pressure alarm & pressure release systems

Applications

• ERCP
• Enteroscopy
• Colonoscopy
• EUS
• EGD

Product Details

• Application:Hospital
• Technical Specifications: :
• Gas : CO2 (medical)
• CO2 gas supply systems : Inf 7/16″
• Input pressure min. to max : 2 to 3 bar
• Insufflation pressure min to max : 4 – 30 mm h (to an accuracy of 1 mm Hg)
• Flow rate min to max : 1 to 20 liters /min (model – c02 -2000) : 1 to 30 liters/min (model – lc02 – 3000)
• Type of power supply : 230 vac + 15% @ 50 – 60 Hz
• Protection by fuse : 5a
• Power consumption : 125 w max with warmer of 20 w max
• Output connection : 6 to 7 mm id tube
• Display : 7 segment 16 x 2 LCD
• Keyboard : feathertouch
• Enclosure : ABS plastic box
• Dimension : 260 (l) mm x 290 (w) mm x 105 (h) mm
• Weight : Approx. 2.5 kg
